Description
This 2026 galvanized tilt trailer is an 80 in x 20 ft tilt and load trailer on tandem axles, hot-dip galvanized in silver, with a 14,000 lb GVWR. It gives you ramp-free loading and a frame that won’t rust, and it is for sale now.
What you get with this galvanized tilt trailer
The deck is 80 in by 20 ft, about 2.03 x 6.1 m. It tilts to the ground for loading and locks level for the road. With 14,000 lb (6,350 kg) of GVWR, it carries skid steers, compact tractors and cars. The galvanized finish means it can live outside without turning orange.
Who it suits
- Contractors who store trailers outside
- Coastal and winter-road users
- Car haulers and dealers
- Hire companies wanting low upkeep
Galvanized tilt trailer specifications
| Year | 2026 |
|---|---|
| Deck size | 80 in x 20 ft (2.03 x 6.1 m) |
| Type | Tilt and load |
| Axle | Tandem |
| Finish | Hot-dip galvanized, silver |
| GVWR | 14,000 lb (6,350 kg) |
Ask us about the tilt system, deck material, brakes and empty weight.
Why galvanized on a tilt trailer
Tilt trailers have pivots, hinges and a moving deck, and that’s where paint wears first. Hot-dip galvanization protects those areas far better than paint. You still grease the pivot, but you won’t be wire-brushing rust off it every spring.
Towing a galvanized tilt trailer
Loaded, plan for a 3/4-ton or 1-ton pickup and a brake controller. The gross vehicle weight rating includes the trailer itself.
Loading on a tilt deck
Unlock, let the deck lower, drive on slowly and let it level. Lock it, then chain at four points.
Mistakes to avoid
Forgetting to grease the tilt pivot. Galvanizing stops rust, not wear.
Pre-trip checklist
- Coupler latched and pinned, safety chains crossed and hooked
- Breakaway cable clipped to the vehicle, not to the chains
- Trailer brakes tested at walking speed
- All lights and indicators working
- Tire pressures and wheel nuts checked
- Load chained or strapped, weight just ahead of the axles
- Jack raised and ramps or doors secured
Run through this every time you hook up your galvanized tilt trailer. Then check the load again after the first few kilometres, because things settle.
Trailer terms explained
Words you will see when you compare any galvanized tilt trailer:
- GVWR: the most the trailer and its load can weigh together.
- Payload: the GVWR minus the empty weight of the trailer.
- Gravity tilt: a deck that tips by itself once the load passes the balance point.
- Power tilt: a deck raised and lowered by a hydraulic pump.
- Pivot point: where the deck tilts, usually near the axles.
- Deck lock: holds the deck level for travel. Always check it before driving.
How owners use a galvanized tilt trailer
Contractors carry skid steers. Dealers move cars. Farmers carry compact tractors. A galvanized tilt trailer handles all of it and still looks clean years later.
Storing it
Park on firm, level ground with the jack on a block so it does not sink. Touch up chips before winter so rust does not get started. If the trailer sits for weeks, move it now and then so the tires do not flat-spot, and check pressures before the next trip. A coupler lock or wheel clamp is cheap insurance when your galvanized tilt trailer is parked where people can see it.
Compare other tilt trailers

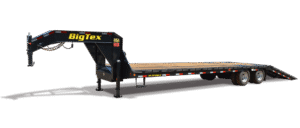

The 7×22 tilt trailer is longer with a higher rating. The 6×12 tilt trailer is smaller. For gooseneck towing, see the used gooseneck tilt trailer.
See a practical guide to choosing the right trailer.
Accessories worth adding
Chains and binders or heavy ratchet straps suited to your machines are the basics. Wheel chocks, a spare tire and a coupler lock come next. Many owners add a front winch for machines and cars that do not run, a tongue box for straps and gloves, and LED lights on the deck for loading in the dark. These extras make a galvanized tilt trailer quicker and safer to use.
Before you buy
Measure your machines, check their weights with attachments and compare them with the deck size and GVWR. Confirm your truck can tow the loaded trailer and that your hitch matches the coupler. Think about how often you load. Gravity tilts suit occasional use, while power tilts make sense for daily loading or low and heavy machines. If those answers point here, this galvanized tilt trailer will suit you. If not, ask us and we will help you choose.
Driving with a tilt trailer
Always check that the deck is locked level before you drive. A loaded tilt deck with a tall machine raises the centre of gravity, so corner gently and brake early. Re-check chains after the first few kilometres. When you arrive, unload on level ground and keep everyone clear of the deck while it moves. Treat your galvanized tilt trailer like any heavy trailer and it will give you years of easy loading.
Common questions
Can this galvanized tilt trailer carry a skid steer?
Most compact ones, yes. Send us the weight.
Is the tilt hydraulic?
Ask us to confirm.
Does galvanizing need care?
Just a rinse now and then.
Is a tilt deck safe for low cars?
Yes. The low loading angle is one of the main reasons car owners choose a tilt deck.
Can I load from the side?
With the deck level, pallets can often be loaded from the side with a forklift.
Do you offer delivery?
Ask us about delivery to your area when you order your galvanized tilt trailer.
What to check when it arrives
Test the tilt and lock, check deck, lights, brakes and tyres.
Matching the hitch
Ball size has to match the coupler exactly. A 2 in ball in a 2 5/16 in coupler can pop off over a bump. Check the rating stamped on the ball, the drawbar and the receiver, and go by the lowest of the three.
Ride height matters too. Your galvanized tilt trailer should sit level or a fraction nose down when hitched. If it tips back, get a drop or rise drawbar to fix it rather than living with it, because a nose-high trailer sways more and wears its tires unevenly.
Parking and storing between jobs
Park on firm, level ground where you can. Chock a wheel on both sides if the ground slopes even slightly, and put a board under the jack foot on soft soil or hot asphalt so it doesn’t sink. A coupler lock costs little and stops the easiest kind of theft.
Lift the tongue a touch higher than the back so rain runs off instead of pooling. If your galvanized tilt trailer will sit for months, take some weight off the tires with stands and cover the coupler so it doesn’t fill with grit.
Wiring and lights
Most electrical trouble on a trailer comes down to a bad ground. If a light flickers or the indicators blink at a strange speed, clean the ground point on the frame and the plug pins before buying new bulbs. A little dielectric grease on the plug keeps water out.
LED lights draw less power and last longer, but they still need a clean connection. Test everything on your galvanized tilt trailer with a helper before each trip. It takes thirty seconds and saves a roadside stop.
Tires and wheel bearings
Trailer tires age faster than they wear. A set can look fine on tread and still be cracked in the sidewalls after five or six years, especially if the trailer sits outside in the sun. Check the date code on the sidewall when you buy spares, and keep them at the pressure printed on the tire, not the one on your tow vehicle door.
Bearings want fresh grease about once a year or every 12,000 miles (20,000 km), whichever comes first. Feel the hubs with the back of your hand at a fuel stop. Warm is normal. Too hot to touch means stop and look before going further. A spare wheel that fits your galvanized tilt trailer is cheap insurance, so carry one.
Backing up without the stress
Put your hand at the bottom of the steering wheel. Move your hand left and the back of the trailer goes left. That one trick sorts out most of the confusion. Go slowly, make small corrections, and get out to look whenever you aren’t sure. Nobody minds waiting ten seconds; everybody minds a dented gate post.
Longer trailers are easier to reverse than short ones because they react more slowly, so don’t let the length of a galvanized tilt trailer put you off. Half an hour in an empty car park with a couple of cones does more than any amount of reading.
Talk to us before you order
Every buyer tows something different and carries something different. If you want to double-check that this galvanized tilt trailer suits your vehicle, your hitch or the load you have in mind, send us a message with the details. We will give you a plain answer, tell you what we know about this exact unit and point you to another model if it fits your needs better. No pressure, just straight advice.
Buy this galvanized tilt trailer
This galvanized tilt trailer is for sale now. Add it to your cart or contact us. See all tilt and load trailers or the shop.
