Trailers SINGLE AXLE GRAVITY TILT TL612-7K

Description

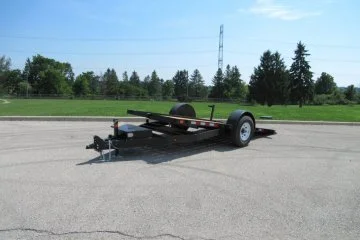

This 7000 lb tilt trailer is a single axle 6×12 gravity tilt model, TL612-7K, rated at 7,000 lb GVWR. It’s the same handy size as our 5K version, but built to carry a lot more, which suits compact tractors with loaders and heavier garden machinery. It is for sale now.

What you get with this 7000 lb tilt trailer

The deck is 6 by 12 ft, about 1.8 x 3.7 m, on a single heavy-duty axle. The 7,000 lb (3,175 kg) rating gives you about 2,000 lb more headroom than a typical 6×12, so a compact tractor with a front loader, or a mini digger at the lighter end, becomes realistic. The gravity tilt means no ramps and nothing to maintain beyond the pivot.

Who it suits

• Smallholders with a compact tractor
• Landscapers with a heavy ride-on
• Owners of micro excavators
• Anyone who wants weight capacity in a short trailer

7000 lb tilt trailer specifications

Model	TL612-7K
Deck size	6 ft x 12 ft (1.8 x 3.7 m)
Type	Gravity tilt
Axle	Single
GVWR	7,000 lb (3,175 kg)

Ask us for year, finish, brakes, deck material and empty weight.

Why a heavier rating on a short trailer

Compact tractors are short but dense. A 5,000 lb trailer can be overloaded by a tractor that fits it easily. The 7K version has a stronger axle, springs and tyres to deal with that. Weigh your machine with its loader and any ballast; it’s usually more than people expect.

Towing a 7000 lb tilt trailer

Loaded heavy, you’ll want a half-ton or 3/4-ton pickup and a brake controller. The gross vehicle weight rating includes the trailer. Short single axle trailers can feel twitchy if loaded tail-heavy, so keep weight forward.

Loading

Unlock, drive on slowly, let the deck level, lock it, and chain the machine at four corners.

Mistakes to avoid

Assuming any compact tractor fits under 7,000 lb with the trailer’s own weight. Do the sums first.

Pre-trip checklist

• Coupler latched and pinned, safety chains crossed
• Lights and indicators working
• Tire pressures right, wheel nuts tight
• Load strapped down and balanced, heavy items forward
• Jack fully raised

It takes two minutes before each trip with your 7000 lb tilt trailer, and it catches most problems while you are still in the driveway.

Trailer terms explained

Words you will see when you compare any 7000 lb tilt trailer:

• GVWR: the most the trailer and its load can weigh together.
• Payload: the GVWR minus the empty weight of the trailer.
• Gravity tilt: a deck that tips by itself once the load passes the balance point.
• Power tilt: a deck raised and lowered by a hydraulic pump.
• Pivot point: where the deck tilts, usually near the axles.
• Deck lock: holds the deck level for travel. Always check it before driving.

How owners use a 7000 lb tilt trailer

Smallholders move a tractor between fields. Landscapers carry a micro digger. A 7000 lb tilt trailer gives heavy capacity without a long trailer to park.

Storing it

Park on firm, level ground with the jack on a block so it does not sink. Touch up chips before winter so rust does not get started. If the trailer sits for weeks, move it now and then so the tires do not flat-spot, and check pressures before the next trip. A coupler lock or wheel clamp is cheap insurance when your 7000 lb tilt trailer is parked where people can see it.

Compare other tilt trailers

The gravity tilt trailer is the 5,000 lb version. The 6×14 tilt trailer is longer. For tandem axles and more length, see the 7×20 tilt trailer.

See choosing a trailer for work, travel and everyday hauling.

Accessories worth adding

Chains and binders or heavy ratchet straps suited to your machines are the basics. Wheel chocks, a spare tire and a coupler lock come next. Many owners add a front winch for machines and cars that do not run, a tongue box for straps and gloves, and LED lights on the deck for loading in the dark. These extras make a 7000 lb tilt trailer quicker and safer to use.

Before you buy

Measure your machines, check their weights with attachments and compare them with the deck size and GVWR. Confirm your truck can tow the loaded trailer and that your hitch matches the coupler. Think about how often you load. Gravity tilts suit occasional use, while power tilts make sense for daily loading or low and heavy machines. If those answers point here, this 7000 lb tilt trailer will suit you. If not, ask us and we will help you choose.

Driving with a tilt trailer

Always check that the deck is locked level before you drive. A loaded tilt deck with a tall machine raises the centre of gravity, so corner gently and brake early. Re-check chains after the first few kilometres. When you arrive, unload on level ground and keep everyone clear of the deck while it moves. Treat your 7000 lb tilt trailer like any heavy trailer and it will give you years of easy loading.

Common questions

Can this 7000 lb tilt trailer carry a compact tractor with a loader?

Many, yes. Send us the weight with loader and ballast.

Does it have brakes?

Ask us to confirm.

Is a single axle safe at 7,000 lb?

Yes, when it’s rated for it and loaded properly.

Is a tilt deck safe for low cars?

Yes. The low loading angle is one of the main reasons car owners choose a tilt deck.

Can I load from the side?

With the deck level, pallets can often be loaded from the side with a forklift.

Do you offer delivery?

Ask us about delivery to your area when you order your 7000 lb tilt trailer.

What to check when it arrives

Test the tilt and lock, check deck, lights, brakes and tyres.

Chains, binders and straps

For machines with steel tracks or a lot of weight, use grade 70 chain and proper binders, not ratchet straps. Straps are fine for light cargo, but they stretch, fray on sharp edges and lose tension in the rain. Chain each corner of the machine to its own anchor point, angled outward, so it can’t move forward, back or sideways.

Check the tension after the first few miles. Loads settle and chains slacken a little. Keeping a spare binder and a length of chain in the toolbox of your 7000 lb tilt trailer saves a lot of trouble when one goes missing.

Matching the hitch

Ball size has to match the coupler exactly. A 2 in ball in a 2 5/16 in coupler can pop off over a bump. Check the rating stamped on the ball, the drawbar and the receiver, and go by the lowest of the three.

Ride height matters too. Your 7000 lb tilt trailer should sit level or a fraction nose down when hitched. If it tips back, get a drop or rise drawbar to fix it rather than living with it, because a nose-high trailer sways more and wears its tires unevenly.

Tires and wheel bearings

Trailer tires age faster than they wear. A set can look fine on tread and still be cracked in the sidewalls after five or six years, especially if the trailer sits outside in the sun. Check the date code on the sidewall when you buy spares, and keep them at the pressure printed on the tire, not the one on your tow vehicle door.

Bearings want fresh grease about once a year or every 12,000 miles (20,000 km), whichever comes first. Feel the hubs with the back of your hand at a fuel stop. Warm is normal. Too hot to touch means stop and look before going further. A spare wheel that fits your 7000 lb tilt trailer is cheap insurance, so carry one.

Your first few tows

Take the empty trailer for a short drive on quiet roads before your first real job. Get used to how it follows, how much wider you need to take corners, and how the brakes feel. Then try a light load, and only after that a full one.

Set the brake controller so the trailer brakes slightly before the truck, without locking the wheels. Leave twice your normal following distance. After about 50 miles (80 km), stop and re-torque the wheel nuts on your 7000 lb tilt trailer, since new wheels can settle.

Looking after the deck

Wood decks are kind to tyres and tracks and easy to replace board by board. Keep them clean so water doesn’t sit under mud and rot the wood. If a board cracks or goes soft, swap it before a machine finds it. Steel decks last longer but get slippery when wet or icy, so take extra care loading in bad weather.

Every few months, check the deck bolts or screws on your 7000 lb tilt trailer and tighten any that have worked loose. Ten minutes with a socket set keeps the deck quiet and solid on the road.

Talk to us before you order

Every buyer tows something different and carries something different. If you want to double-check that this 7000 lb tilt trailer suits your vehicle, your hitch or the load you have in mind, send us a message with the details. We will give you a plain answer, tell you what we know about this exact unit and point you to another model if it fits your needs better. No pressure, just straight advice.

Buy this 7000 lb tilt trailer

This 7000 lb tilt trailer is for sale now. Add it to your cart or contact us. See all tilt and load trailers or the shop.
